Lamp YODN MSD 330W R15
Control Lamp on/off via console or manual
Ballast Electronic ballast: 100V-240V 50-50Hz
Color wheel 14colors+open;Rainbow effect and 14 colors mixing
Gobo wheel Static gobo 17+open
Gobo flow and shaking effect
Gobo random position and counter-clockwise rotation
Strobe Independent strobe channel 1-12 flashes per second,built-in macros functions
Dimmer Independent dimmer channel ,0-100% linear dimmer
Frost Independent linear frost
Especial effect 1, Cut light and lamp on/ off function

2, 16 facet prism rotation and position,Prism and gobo combination,built-in program
3, Motorized smooth focus,with column lens (high-end optional ),digital random position and shaking function . Combing with the 16 lens, it can achieve abundant miracle effects
4, Internal focus lens to achieve precise focus effect
x/y movement X/Y motors three phase(high-end optional ),pan540, tilt 280,automatic pan/tilt correction,independent pan/tilt
x/y resolution 8/16 bit
Temperature control function equipped with fan speed control system to prevent the bulb from burst

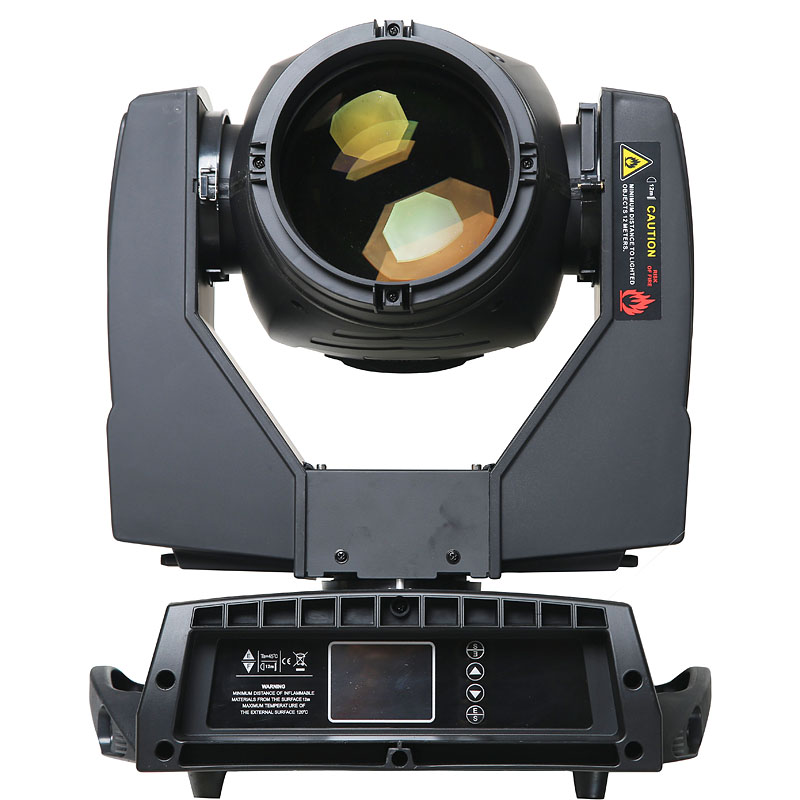

Focus Large 155mm diameter front lens

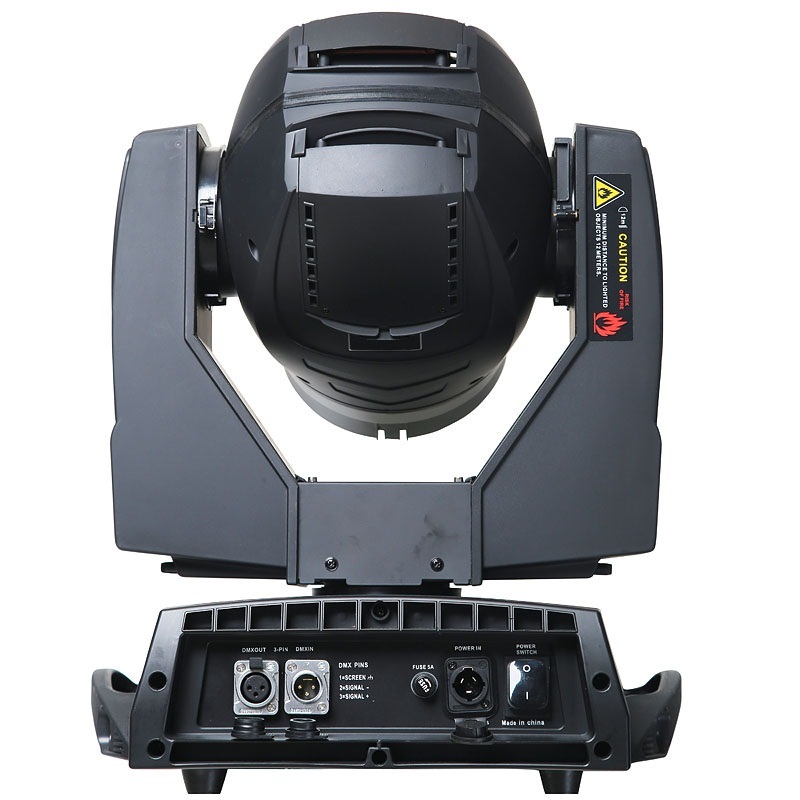

control and programming 20/17/16 DMX512 control channel LCD display,3 pin XLR male, 3 pin XLR female

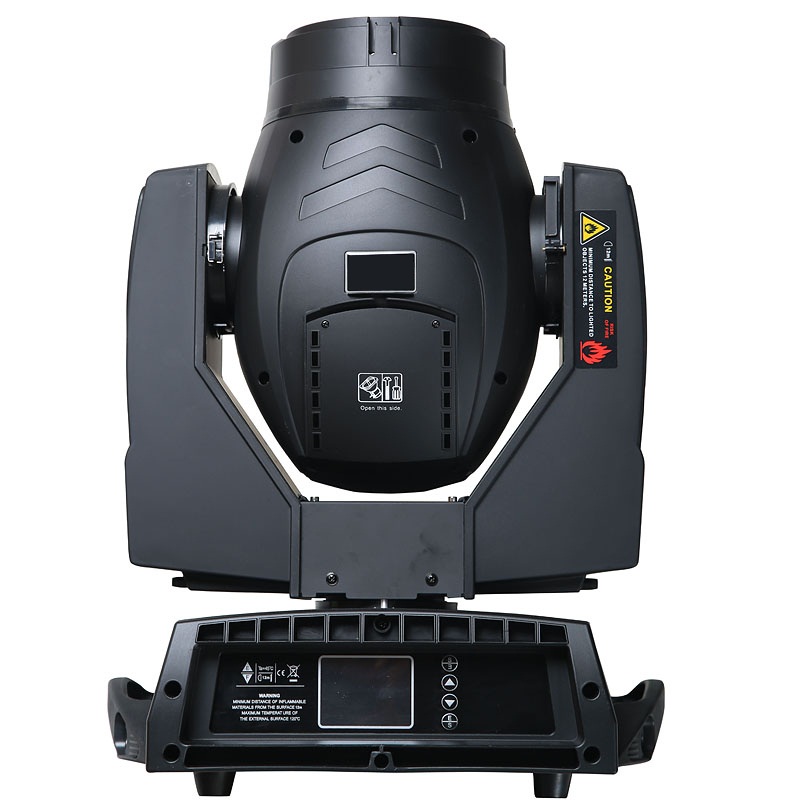

Display 2.8' full color Touch screen
IP Rate IP54
Dimension 330×405×475mm
Weight 25.5 kgs
