Technical Feature

Lamp YODN MSD 440 R20 440W, 6700K discharge lamp

Lamp control Lamp on/off via controller or manual
Ballast 100-240V,50/60Hz,600W
Color wheel CMY color mixing with gradually fading color wheels
11 special color filters on one wheel
CTO filters (3200 K -2500 K)
Gobo wheel Wheel with 7 rotating gobos,Gobo size diameter:23mm ,image diameter:15mm;
Wheel with 17 metal gobos
Strobe High-speed and adjustable speed, strobe with macro function
Dimmer 0-100% linear adjustment
Frost Independent linear frost
Zoom angel 2.2°-7°(beam mode)
2.4°-33°(gobo mode)
6°-43°(frost mode)
P/T resolution Pan 540°,8Bit/16Bit
Tilt 270°,8Bit/16Bit
Effect wheel 2 rotating prisms,one 8 facet prism, one 24 facet prism
A rainbow effect color wheel,with the prism superposition,can create the effect of the rainbow prism
Control mode 30 Channels model
Display 2.8 inch display,180°reverse display availabe
IP Rate IP55

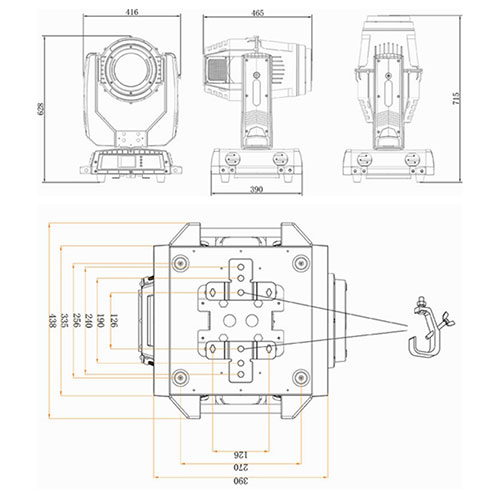

Dimension 440x390x680MM
Weight 30 KGS
